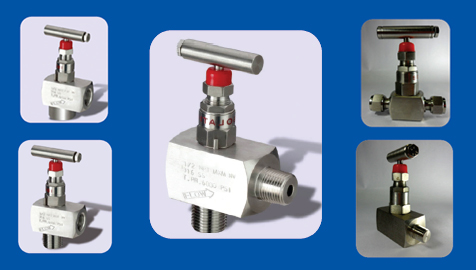

Needle Valves


We have many variance in needle valves. These Valves are available in two way, three way, multiport, single block & bleed, double block and bleed.
These needle valves are available with a variety of end connection screwed male/female pipe ends which confirms to ferrule designs.

We are capable of accommodating any special requirements of the customers with any end connections required for pressure ranging form 10kg/ cm2 to 700 kg / cm2.

The needle valves displayed in the catalogue does not cover the entire range but only a few of our valves are shown.

Material of Construction : SS316, SS304, Monel, Hastelloy, Inconel, Brass and Carbon Steel.

Range : 1/8" to 1" threaded. 1/8" OD to 1" OD suitable for tube end. 4mm OD to 25mm OD Suitable for tube end.

End Connections : NPT/BSPT/BSP

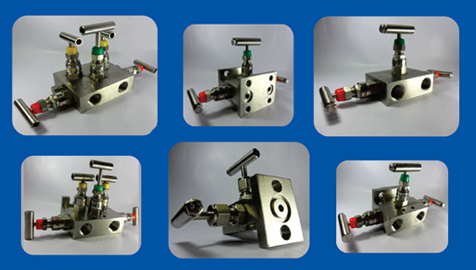

Manifolds


Our Manifold Valves provide a safe economical and convenient method of Isolating, Blocking, Bleeding and Calibrating Instruments, Meters and Pressure Transmitters. These valves are available in numerous body, bonnet, and seal configuration with NPTF, Tubefittings and Instrument Flange connections.

Viara Manifold Valves operate to pressures of 415 kg/cm2 and offer excellent flexibility with diaferent body patterns and hard seat models utlilizing either a vee, ball or non-rotating stem.

Valve models include 2, 3 and 5 bannet remote lining mounting, single flange, and 2 and 3 bannet direct mounting, dual flange. Direct mounting H type manifold valve is available in 3 and 5 bannet design.

Material of Constructions : SS316, SS316L, SS304, Carbon Steel, Monel, Inconel and Hastelloy.

End Connections : NPT/BSPT/BSP

Ratings : Upto 6000PSI.
